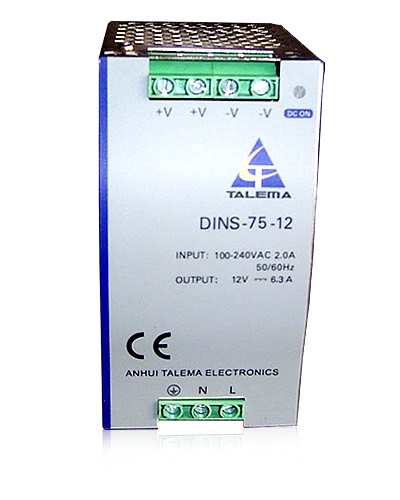

DINS-75 (Din Rail Power Supply)
Features & Specifications
Universal AC input/Full range
Protection:Short circuit / over load / over voltage
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on.
Approval:CE
100% full load burn-in test
High reliability,low cost
2 years warranty
|
INDEX TYPE
|
DINS-75-12
|
DINS-75-24
|
|
DC VOLTAGE
|
12V
|
24V
|
|
VOLTAGE TOLERANCE
|
±2%
|
±1%
|
|
RATED CURRENT
|
6.3A
|
3.2A
|
|
CURRENT RANGE
|
0-6.3A
|
0-3.2A
|
|
RIPPLE&NOISE (MAX.)
|
100mV
|
150mV
|
|
RATED POWER
|
75W
|
75
|
|
EFFICIENCY
|
76%
|
80%
|
|
VOLTAGE ADJ.RANGE
|
±10%
|
±10%
|
|
VOLTAGE RANGE
|
85-264VAC 47-67HZ
|
|
INRUSH CURRENT (MAX.)
|
COLD START,30A AT 115VAC,60A AT 230VAC
|
|
OVERLOAD PROTECTION
|
105%-150% CONSTANT CURRENT LIMITING AUTO-RECOVERY
|
|
OVERVOLTAGE PROTECTION
|
115%-135% RATED OUTPUT VOLTAGE
|
|
SETUP.RISE,HOLD TIME
|
1000ms.60ms.50ms AT FULL LOAD AND 230VAC
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
|
|
WORKING TEMP.HUMIDITY
|
0-50℃@100%,-10℃@80%,60℃@80% LOAD
|
|
DIMENSION
|
56X126X100mm
|
|
WEIGHT
|
0.6KGS
|
|
SAFETY STANDARDS
|
TO MEET UL508 EN60950
|
|
EMC
|
EN55022 CLASS B EN61000
|
