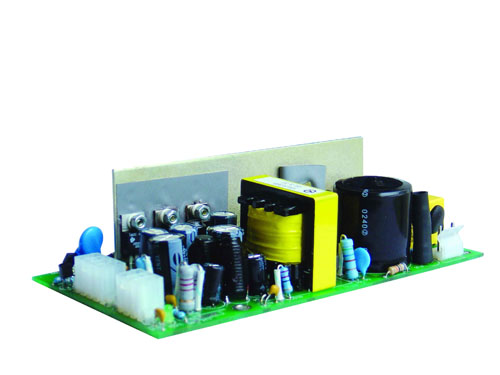

SO-60 (Open Frame)
Features & Specif ications
|
INDEX TYPE
|
SO-60-5
|
SO-60-12
|
SO-60-24
|
SO-60-48
|
|
DC VOLTAGE
|
5VDC
|
12VDC
|
24VDC
|
48VDC
|
|
VOLTAGE TOLERANCE
|
±2%
|
±1%
|
±1%
|
±1%
|
|
RATED CURRENT
|
12A
|
5A
|
2.5A
|
1.25A
|
|
CURRENT RANGE
|
0-12A
|
5A
|
2.5A
|
0-1.25A
|
|
RIPPLE&NOISE (MAX.)
|
80mVp-p
|
100mVp-p
|
120mVp-p
|
150mVp-p
|
|
LINE REGULATION
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
LOAD REGULATION
|
±1
|
±0.5%
|
±0.5%
|
±0.5%
|
|
RATED POWER
|
60W
|
60W
|
60W
|
60W
|
|
EFFICIENCY
|
76%
|
79%
|
82%
|
83%
|
|
VOLTAGE ADJ.RANGE
|
±10%
|
±10%
|
±10%
|
±10%
|
|
VOLTAGE RANGE
|
85～264VAC 47～63Hz
|
|
AC CURRENT
|
1.2A/115V 0.6A/230V
|
|
INRUSH CURRENT (MAX.)
|
cold inrushed current 2A/115V 4A/230V
|
|
LEAKAGE CURRENT
|
<1mA/240VAC
|
|
OVERLOAD PROTECTION
|
105%～150%T
|
|
OVERVOLTAGE PROTECTION
|
115%-135%
|
|
OVER TEMP. PROTECTION
|
±0.03%/℃(0～50℃)
|
|
TEMP.COEFFICIENT
|
50ms 20ms
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC
|
|
ISOLATED RESISTOR
|
I/P-O/P,I/P-FG,I/P-FG:500VDC/100MΩ
|
|
WORKING TEMP.HUMIDITY
|
-10℃～+60℃(REFER TO CHARACTER CURVE),20%～90RH
|
|
STORAGE TEMP.HUMIDITY
|
-20℃～+85℃,10%～95%RH
|
|
DIMENSION
|
127x77x27mm
|
|
WEIGHT
|
0.3gs
|
|
COOLING METHOD
|
Natural
|
|
SAFETY STANDARDS
|
UL1012 TUB60950(IEC950,UL1950)
|
|
EMC
|
CISPR22(55022),IEC801-2,3,4,IEC555-2
|
Note:
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance, line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation :min&max voltage of the rated load.
5.load regulation: load from 0 to 100%.
