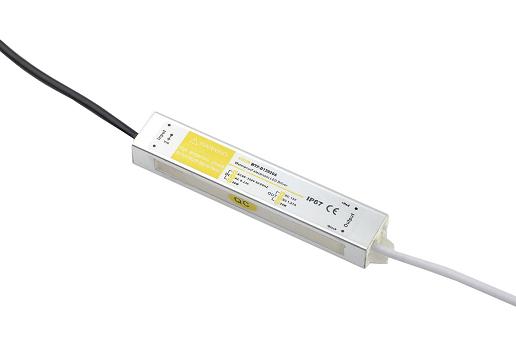

18W 24VDC Part No:YL-24-018
|
Standards And Electrical Characters
|
|
According
to Standards
|
GB195110.1-2004/IEC61347-1:2003
|
|
Store Temperature
|
-25℃～50℃
|
|
|
|
|
|
Input Voltage
|
|
|
|
|
AC110～250V
|
|
HiPot
|
AC3750V/5mA 60S
|
|
Input Power
|
＜21W
|
|
Output Voltage
|
DC23.5～24.5V
|
|
Output Current
|
DC0.75A
|
|
Output Power
|
＜18Wmax
|
|
Effect
|
≤84%
|
|
Temperature Raise
|
≤25℃
|
|

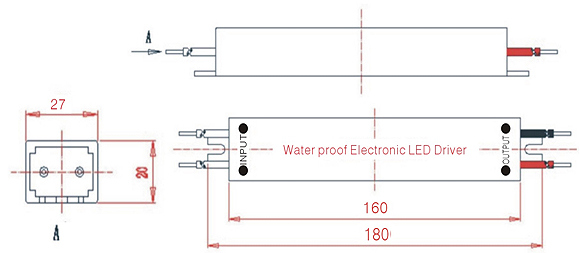

Mechanical Size(mm)
|
|
Type
|
Length
（mm）
|
Width
(mm)
|
Height
(mm)
|
Intput Length
of Wire (mm)
|
Output Length
of Wire(mm)
|
Wire Material
|
|
YL-24018Q
|
160±1
|
27±0.5
|
20±0.5
|
200±5
|
200±5
|
UL1015#0.75㎡
|
|
Product Description：
|
|
1、Design with PWM Switch Technical: High Performance, Stable, Low energy wastage, High effect, About 50% Lower energy wastage compare to normal transformer.
2、Power protection:Overload, OverVoltage, Overcurrent, Shortcircuit protect.
3、Widen Input voltage range:(Volage:110—250V).
4、Various kind of Waterproof Power Supply.
5、Cover with Aluminum-Co-metal material, high performance for reduce heat, temperature raise less than 25℃.
|
|
Installation：
|
|
1、Power supply should be installed for heat reduce easy, air flow, not allowed to approach heater.
2、Avoid work in abnormal condition for long term, such as voerload,shortcircuit, over voltage Etc.
3、Working voltage and current should according to specification.
4、Wire connection should be stable and insulation to avoid leakage shot.
|
|
Package：
|
|
1、White Box independent
|
|
Packing
|
|
1、10PCS every level,5 levels. Total 50PCS .
|
